E-Lock for NACS/Tesla Charging Inlet

Prevent arcing, improve safety, and prevent unwanted unplugging by adding an E-Lock to your NACS Charging Inlet. Required for Level 3 applications, but highly recommended for all applications.

E-Lock can be controlled by the ampREVOLT NACS E-Lock Controller for Level 1 and Level 2 charging applications! Bundle all three NACS components together and get $35 off. Discount shown in cart.

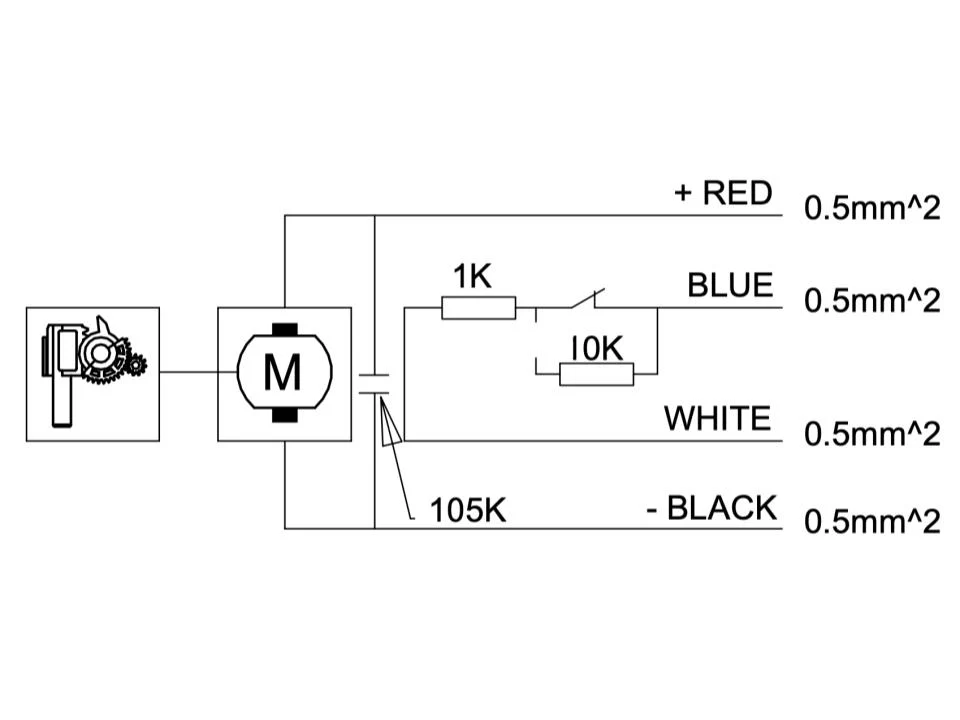

Wiring Information:
     Red: Motor +
     Black: Motor -
     Blue: Feedback
     White: Feedback

Feedback Signal:
     Unlocked: 1 KΩ
     Locked: 11 KΩ
