TSM 600W DC-DC Converter
TSM Isolated DC-DC converter has 13.8V output with a max of 50 amps (burst at 12V), Dimensions are 8"x5.5" Footprint, 3 lbs
Input Voltage: 36-75V, 72-135V or 110-180V

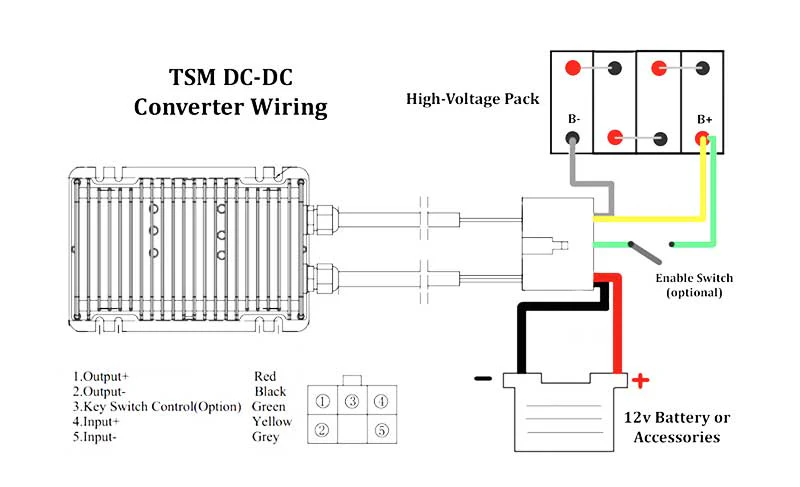

Input:
Yellow B+
Grey B-
Green B+ (On)
Output:
Red 12V +
Black 12V-
Do not connect black to grey.
Specs:
The ipDCIS series isolated DC-DC converter utilizes advanced high frequency power conversion technology and is designed to transfer high power battery voltage to a lower 12V, to supply vehicle mounted devices such as lights and audio systems. Its features include small size, high efficiency, stabilized output voltage, and completely protected functionality.
This DC-DC converter is completely electrical isolated from input to output to ensure safe use; stabilized output voltage can charge 12V batteries; multiple DC-DC converters can be used in parallel directly to increase output current.
Maximum Efficiency: ≥88%
Environmental Enclosure: IP65
Operating Temperature: -20℃-+60℃
Water & vibration Resistant: Enclosure is sealed by silica glue to protect from water and vibration.
Key Switch Control: The converter can be controlled by a key switch control wire instead of an input relay.
Over Heat Protection: Automatically reduces output current if the temperature is over 65°C, but it does not shut down to ensure the continuous power for your accessories.
Short Circuit Protection: Shuts down and auto-resets with little pulse current.
Under Voltage Protection: Shuts down when the voltage of Hi-V battery is too low to avoid over-discharge of the battery.
Output Voltage: 13.8V±0.2V @0A, >12V @50A
Low Voltage Cutoff
Notes:
(1) Be sure you don't have input wires and output wires reversed, otherwise it will cause damage!
(2) Don't open the shell of the converter; there is a risk of electric shock!
