NetGain Micro 880 System
Note: The HyPer-Drive X1 Iso motor controller is on backorder until March 2026.
New to the NetGain Motors, Inc. product line in 2024 , the Micro 880 stands out as a premium Internal Permanent Magnet (IPM) motor. This motor seamlessly pairs with any HyPer-Drive Inverter to form the Micro 8 System - an optimal power-train solution for light-weight vehicles or industrial equipment. Distinguished by its high compression potted stator, the Micro 880 ensures unparalleled reliability and thermal transfer. The independent IP rating of IP65 can be increased to IP67 with an optional shaft seal, or to IP69k when mated to a sealed gearbox. DC supply voltage from 24V to 180V, and current up to 900Arms Peak.
An optional Terminal Cover Kit with cable inlets on either the shaft side or the encoder side is available for additional protection.
Motor Specifications:
• Voltage: 80V Nominal
• Current: 250-900 Arms
• Efficiency Peak: 95%
• S2-5min Power : 32kW
• Continuous Power: 10kW
• RPM Peak: 8,000
• Torque: 103 lbs.-ft.
• Motor Diameter: 8.19”
• Motor Length: 6.3”
• Motor Weight: 40 lbs
• Drive-End Mounting: 4x M8 on 152mm BC
• Encoder-End Mounting: 3x M6 on 145mm BC
• Insulation: 200°C
• Software: SmartView
Motor Interface Options:
• Micro 881: 1.125" shaft with .250" keyway
• Micro 882: 24mm shaft with 8mm keyway
• Micro 883: 13T spline shaft with SAE-B adapter plate
• Micro 884: 19mm shaft with 6mm keyway
• Micro 885: 9T spline shaft with SAE-A adapter plate
• Micro 886: 19T spline shaft with H12/24E/30E-Axle Adapter plate

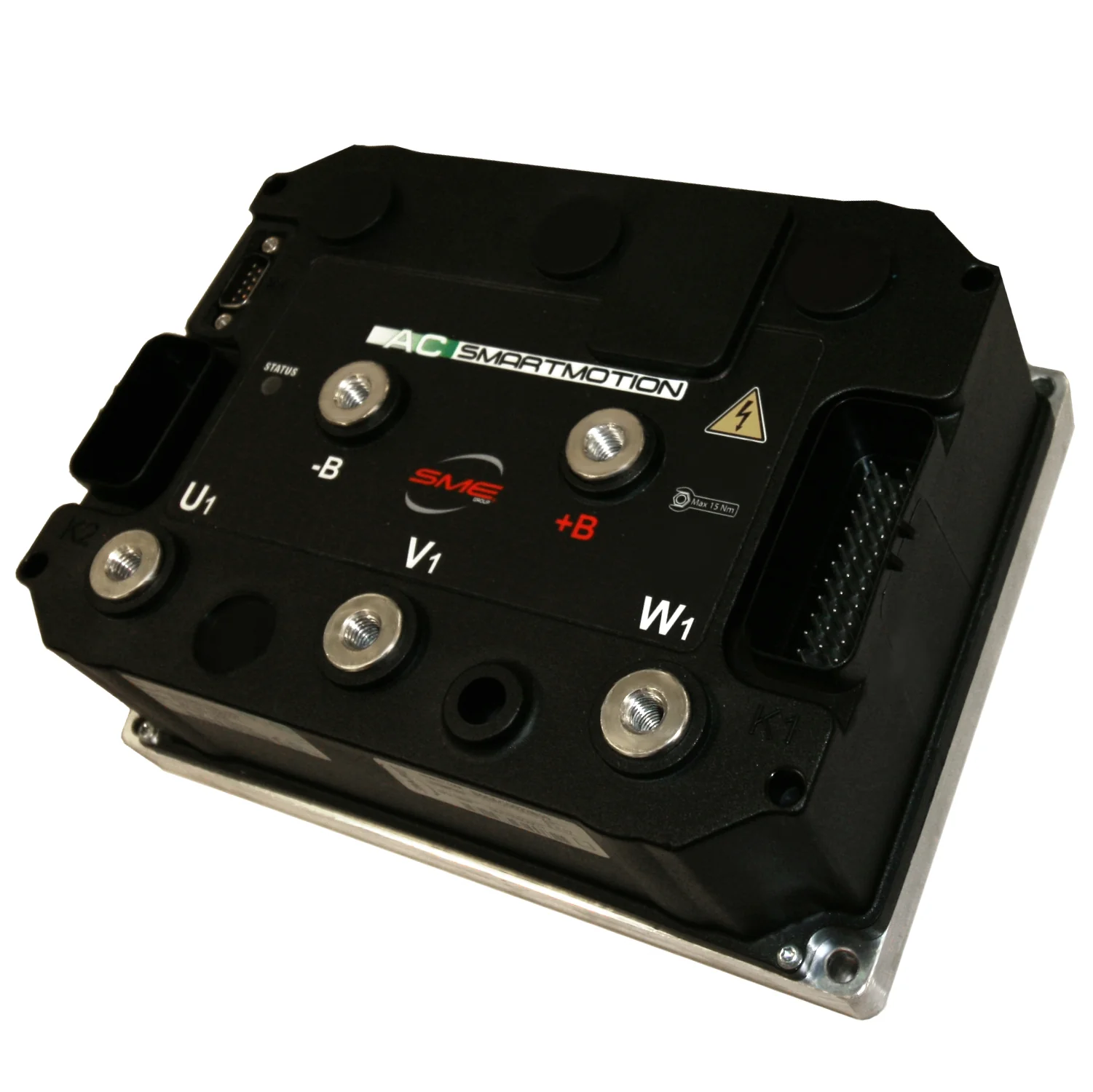

Suggested Controller Options:
• HyPer-Drive X1: 80/100V, 750A, Non-Isolated Logic - (Maximum Torque / High speed)
• HyPer-Drive X1 Iso: 80/100V, 750A, Isolated Logic - (Maximum Torque / High speed)
Alternate Controller Options (contact us to order):
• HyPer-Drive X48: 36/48V, 600A, Non-Isolated Logic - (High Torque / Low Speed)
• HyPer-Drive X125: 80/100V, 250A, Non-Isolated Logic - (Low Torque / High Speed)
• HyPer-Drive X125 Iso: 80/100V, 250A, Isolated Logic - (Low Torque / High Speed)
• HyPer-Drive X144: 144V, 500A, Isolated Logic - (High Torque / Maximum Speed)
• Voltage: 80V Nominal
• Current: 250-900 Arms
• Efficiency Peak: 95%
• S2-5min Power : 32kW
• Continuous Power: 10kW
• RPM Peak: 8,000
• Torque: 103 lbs.-ft.
• Motor Diameter: 8.19”
• Motor Length: 6.3”
• Motor Weight: 40 lbs
• Drive-End Mounting: 4x M8 on 152mm BC
• Encoder-End Mounting: 3x M6 on 145mm BC
• Insulation: 200°C
• Software: SmartView
Motor Interface Options:
• Micro 881: 1.125" shaft with .250" keyway
• Micro 882: 24mm shaft with 8mm keyway
• Micro 883: 13T spline shaft with SAE-B adapter plate
• Micro 884: 19mm shaft with 6mm keyway
• Micro 885: 9T spline shaft with SAE-A adapter plate
• Micro 886: 19T spline shaft with H12/24E/30E-Axle Adapter plate
Suggested Controller Options:
• HyPer-Drive X1: 80/100V, 750A, Non-Isolated Logic - (Maximum Torque / High speed)
• HyPer-Drive X1 Iso: 80/100V, 750A, Isolated Logic - (Maximum Torque / High speed)
Alternate Controller Options (contact us to order):
• HyPer-Drive X48: 36/48V, 600A, Non-Isolated Logic - (High Torque / Low Speed)
• HyPer-Drive X125: 80/100V, 250A, Non-Isolated Logic - (Low Torque / High Speed)
• HyPer-Drive X125 Iso: 80/100V, 250A, Isolated Logic - (Low Torque / High Speed)
• HyPer-Drive X144: 144V, 500A, Isolated Logic - (High Torque / Maximum Speed)

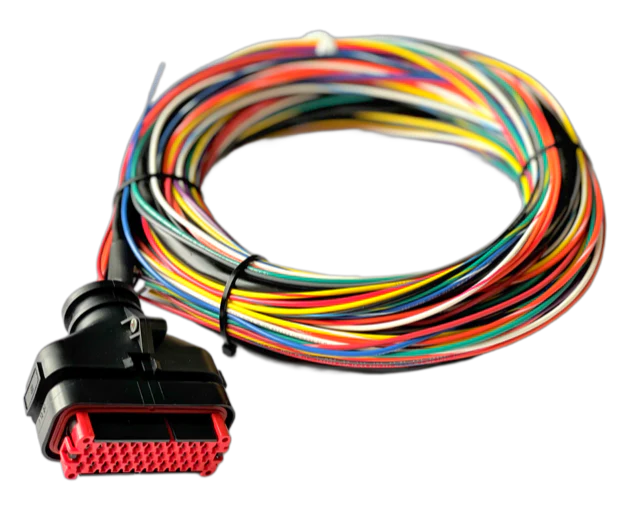

All Micro 880 Systems (except motor only option) include the motor, controller, a standard Ampseal wire harness, and main contactor. Systems with non-isolated controllers include a Gigavac GV200QA-1 contactor, and systems with an isolated controller include a Gigavac GV200PA-1.
Sales sheet and motor drawings (pdf)
