NetGain Micro 840 System

NetGain Micro 840 System

New to the NetGain Motors, Inc. product line in 2024 , the Micro 840 stands out as a premium Internal Permanent Magnet (IPM) motor. This motor seamlessly pairs with any HyPer-Drive Inverter to form the Micro 8 System - an optimal power-train solution for light-weight vehicles or industrial equipment. Distinguished by its high compression potted stator, the Micro 840 ensures unparalleled reliability and thermal transfer. The independent IP rating of IP65 can be increased to IP67 with an optional shaft seal, or to IP69k when mated to a sealed gearbox.

An optional Reversible Terminal Cover Kit can be added for extra protection.

Micro 840 Motor Specifications:
        • Voltage: 48V to 120V Nominal
        • Current: 250-550 Arms
        • Efficiency Peak: 95%
        • S2-5min Power : 13.4kW to 22.5kW
        • S2-60min Power: 5.5kW
        • RPM Peak: 7,000
        • Torque: 46 lbs.-ft.
        • Motor Diameter: 8.19”
        • Motor Length: 4.73”
        • Motor Weight: 25 lbs
        • Drive-End Mounting: 4x M8 on 152mm BC
        • Encoder-End Mounting: 3x M6 on 145mm BC
        • Insulation: 200°C
        • Software: SmartView

Interface Options:
        • Micro 841 - 1.125" shaft with .250" keyway
        • Micro 842 - 24mm shaft with 8mm keyway
        • Micro 843 - 13T spline shaft with SAE-B adapter plate
        • Micro 844 - 19mm shaft with 6mm keyway
        • Micro 845 - 9T spline shaft with SAE-A adapter plate
        • Micro 846 - 19T spline shaft with H12/24E/30E-Axle Adapter plate


Controller Options:
        • HyPer-Drive X48 - 36/48V, 600A, Non-Isolated Logic - (Maximum Torque  /  Standard Speed)
        • HyPer-Drive X125 - 80/100V, 250A, Non-Isolated Logic - (Standard Torque  /  Maximum Speed)
        • HyPer-Drive X125 Iso - 80/100V, 250A, Isolated Logic - (Standard Torque  /  Maximum Speed)

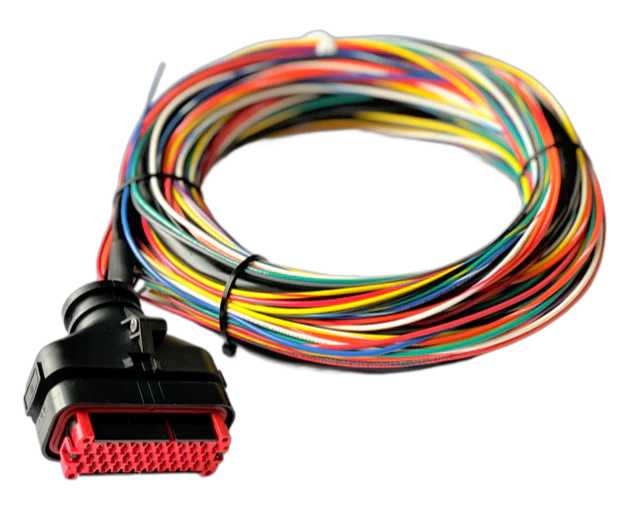

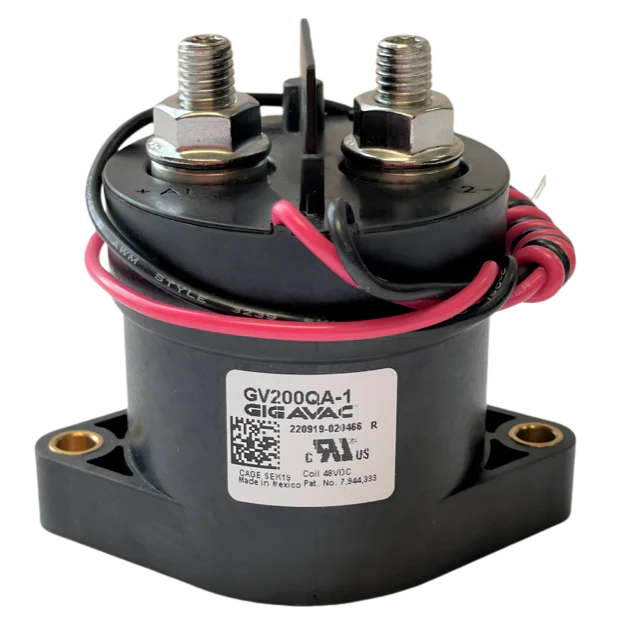

All Micro 840 Systems (except motor only option) include the motor, controller, a standard Ampseal wire harness, and main contactor. Systems with non-isolated controllers include a Gigavac GV200QA-1 contactor, and systems with isolated controllers include a Gigavac GV200PA-1.

Sales sheet and motor drawings (pdf)
