NetGain HyPer 9 System
NOTE: If shipping outside the continental US, please contact us for an accurate shipping quote and to place an order. Dual shaft motors are currently unavailable. The HyPer-Drive X1 Iso motor controller is on backorder until March 2026.

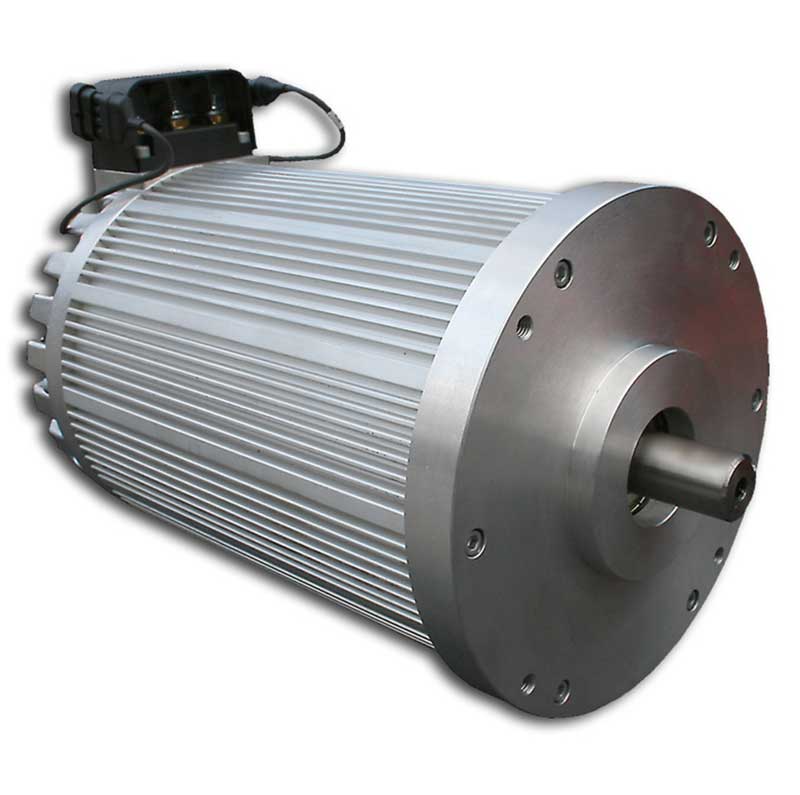

An exciting addition to the NetGain Motors family is this powerhouse 3-phase AC motor/controller kit that uses cutting-edge SRIPM technology, or Synchronous Reluctance Internal Permanent Magnet.
HyPer 9 Motor Specifications:
• DC Input Voltage: 62-130 Volts
• Current: 750 Amp
• Efficiency Peak: 95%
• kW Peak : 95 @ 125V
• kW Continuous: 38 @ 3,300RPM
• RPM Peak: 8,000
• Torque: 173 lbs.-ft. @ 0 RPM
• Regen: Yes, Tailorable
• Motor Diameter: 8.66”
• Motor Length: 13.976”
• Motor Weight: 130 lbs
• Controller Weight: 9 lbs
• Shaft: Single, 1.125" Diameter, 1/4" Keyway
• Mounting: B-Face (matches WarP, Advanced and HPEVS motors)
• Insulation: Class “H”
• Software: SmartView
Suggested Controller Options:

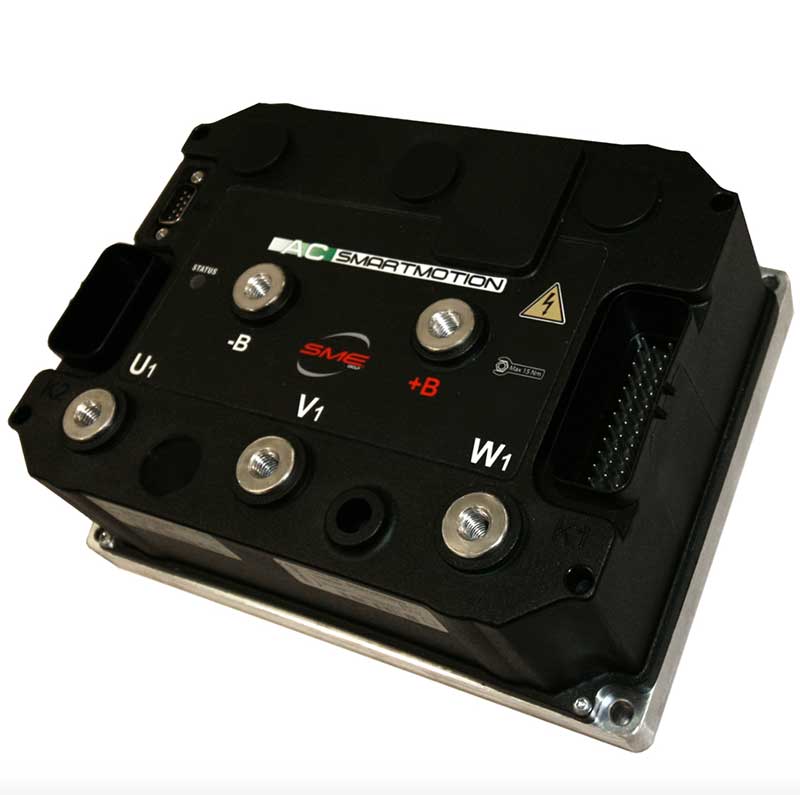

• HyPer-Drive X1: 100V, 250A, Non-Isolated Logic
• HyPer-Drive X1 Iso: 100V, 250A, Isolated Logic
Alternate Controller Option (contact us to order):
• HyPer-Drive X144: 144V, 500A, Isolated Logic

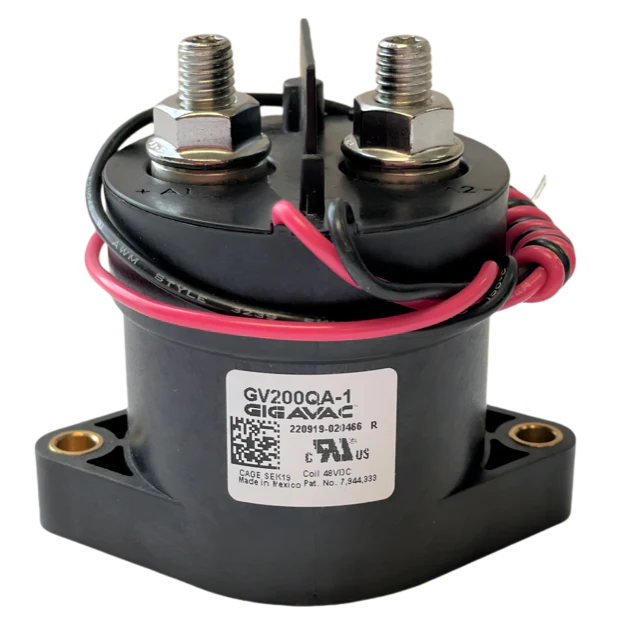

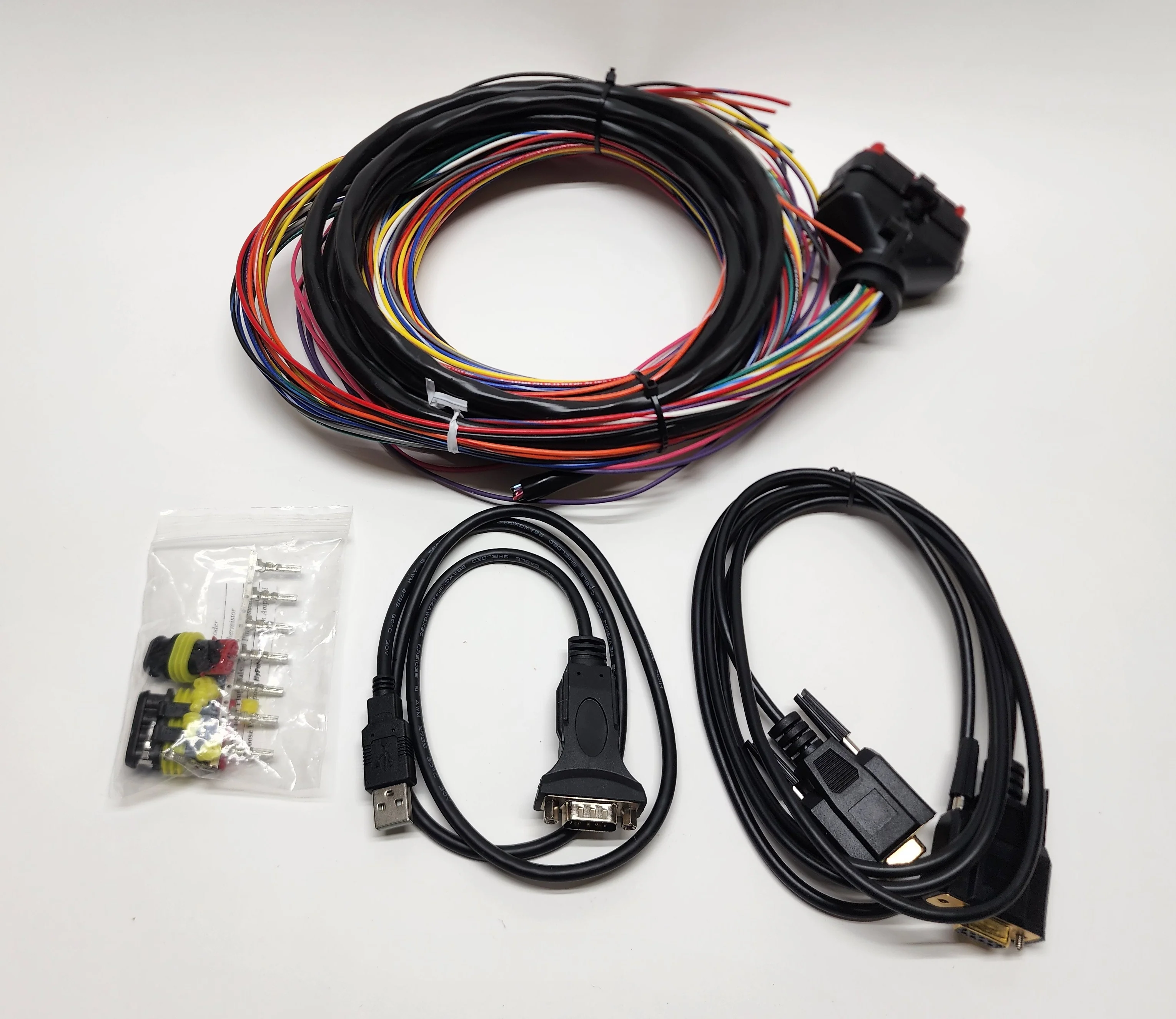

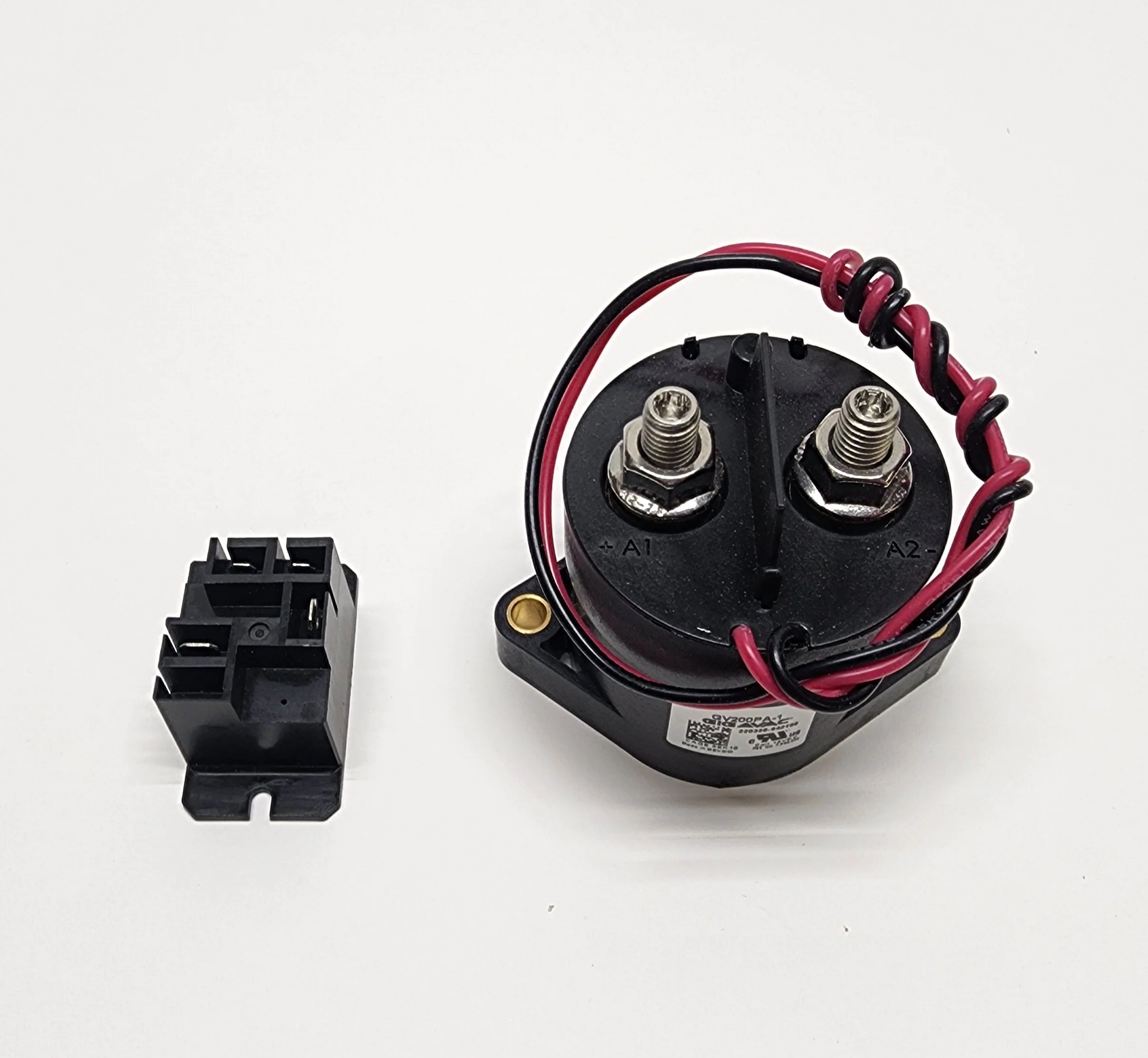

All Hyper 9 Systems (except motor only option) include the motor, controller, standard wire harness kit, precharge relay, and main contactor. Systems with non-isolated controllers include a Gigavac GV200QA-1 contactor, and systems with an isolated controller include a Gigavac GV200PA-1.
