CALB Lithium Iron Phosphate Cell - CA Series

CALB Lithium Iron Phosphate Cell - CA Series

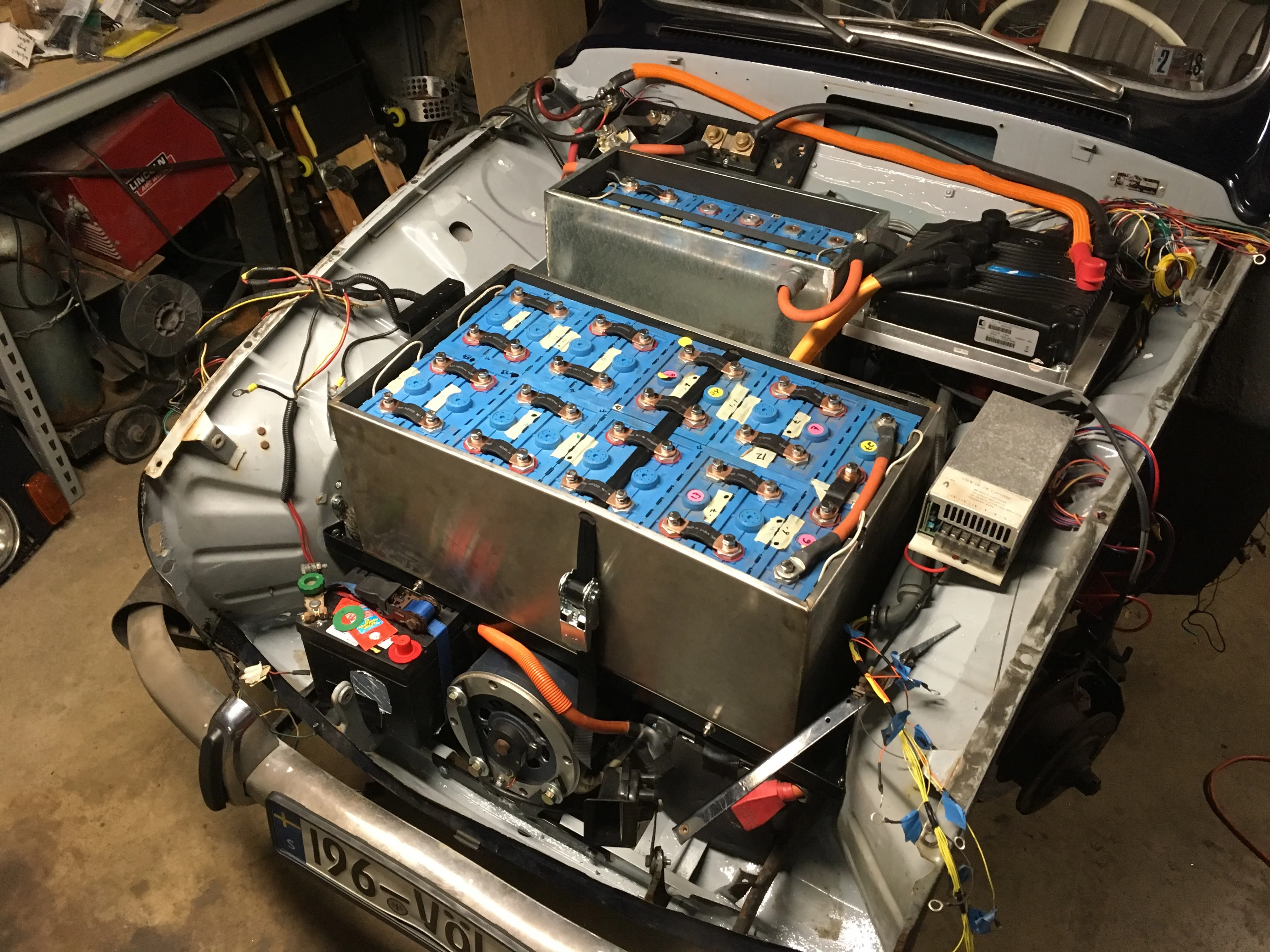

CALB cells have been used widely in the conversion industry over the past decade.  We use them in our vehicles, including our flagship classic SAAB build that continues to get 120-mile range, 85,000 miles and counting.

The CA series (grey case) has enjoyed notable improvements over the earlier SE series (blue case) such as:

  • More power dense
  • Higher discharge rate
  • Better in cold temperature
  • Longer cycle life

Capacity:  100 Ah
Internal Resistance:  .6 mΩ
Length:  142 mm, 5.6 inches
Width:  67 mm, 2.64 inches
Height:  215.5 mm, 8.49 inches
Weight:  3.3 kg, 7.29 lbs
Nominal Voltage:  3.2 volts
Watt Hours:
320 Wh
Max Charge Current:  1C, 100A
Max Charge Voltage:  3.65 volts
Termination Voltage:  2.5 volts
Charge Temperature:  0º-45º C
Discharge Temperature:  -20º-55º C

Capacity:  180 Ah
Internal Resistance:  .5 mΩ
Length:  180 mm, 7.1 inches
Width:  71 mm, 2.8 inches
Height:  279 mm, 11 inches
Weight:  5.6 kg, 12.38 lbs
Nominal Voltage:  3.2 volts
Watt Hours:
576 Wh
Max Charge Current:  1C, 100A
Max Charge Voltage:  3.65 volts
Termination Voltage:  2.5 volts
Charge Temperature:  0º-45º C
Discharge Temperature:  -20º-55º C

Select Capacity
From $25.65

Original: $85.50

-70%
CALB Lithium Iron Phosphate Cell - CA Series

$85.50

$25.65

Product Information

Shipping & Returns

Description

CALB cells have been used widely in the conversion industry over the past decade.  We use them in our vehicles, including our flagship classic SAAB build that continues to get 120-mile range, 85,000 miles and counting.

The CA series (grey case) has enjoyed notable improvements over the earlier SE series (blue case) such as:

  • More power dense
  • Higher discharge rate
  • Better in cold temperature
  • Longer cycle life

Capacity:  100 Ah
Internal Resistance:  .6 mΩ
Length:  142 mm, 5.6 inches
Width:  67 mm, 2.64 inches
Height:  215.5 mm, 8.49 inches
Weight:  3.3 kg, 7.29 lbs
Nominal Voltage:  3.2 volts
Watt Hours:
320 Wh
Max Charge Current:  1C, 100A
Max Charge Voltage:  3.65 volts
Termination Voltage:  2.5 volts
Charge Temperature:  0º-45º C
Discharge Temperature:  -20º-55º C

Capacity:  180 Ah
Internal Resistance:  .5 mΩ
Length:  180 mm, 7.1 inches
Width:  71 mm, 2.8 inches
Height:  279 mm, 11 inches
Weight:  5.6 kg, 12.38 lbs
Nominal Voltage:  3.2 volts
Watt Hours:
576 Wh
Max Charge Current:  1C, 100A
Max Charge Voltage:  3.65 volts
Termination Voltage:  2.5 volts
Charge Temperature:  0º-45º C
Discharge Temperature:  -20º-55º C
