Advanced Parking Brake Controller for Tesla / Brembo Model S & 3
Note: Approximately a one week lead time.
These sweet Tesla Electric Parking Brake Controllers are manufactured right here in Pennsylvania. They have been tested on Model 3 and Model S, but should also theoretically work with Model X and Model Y.

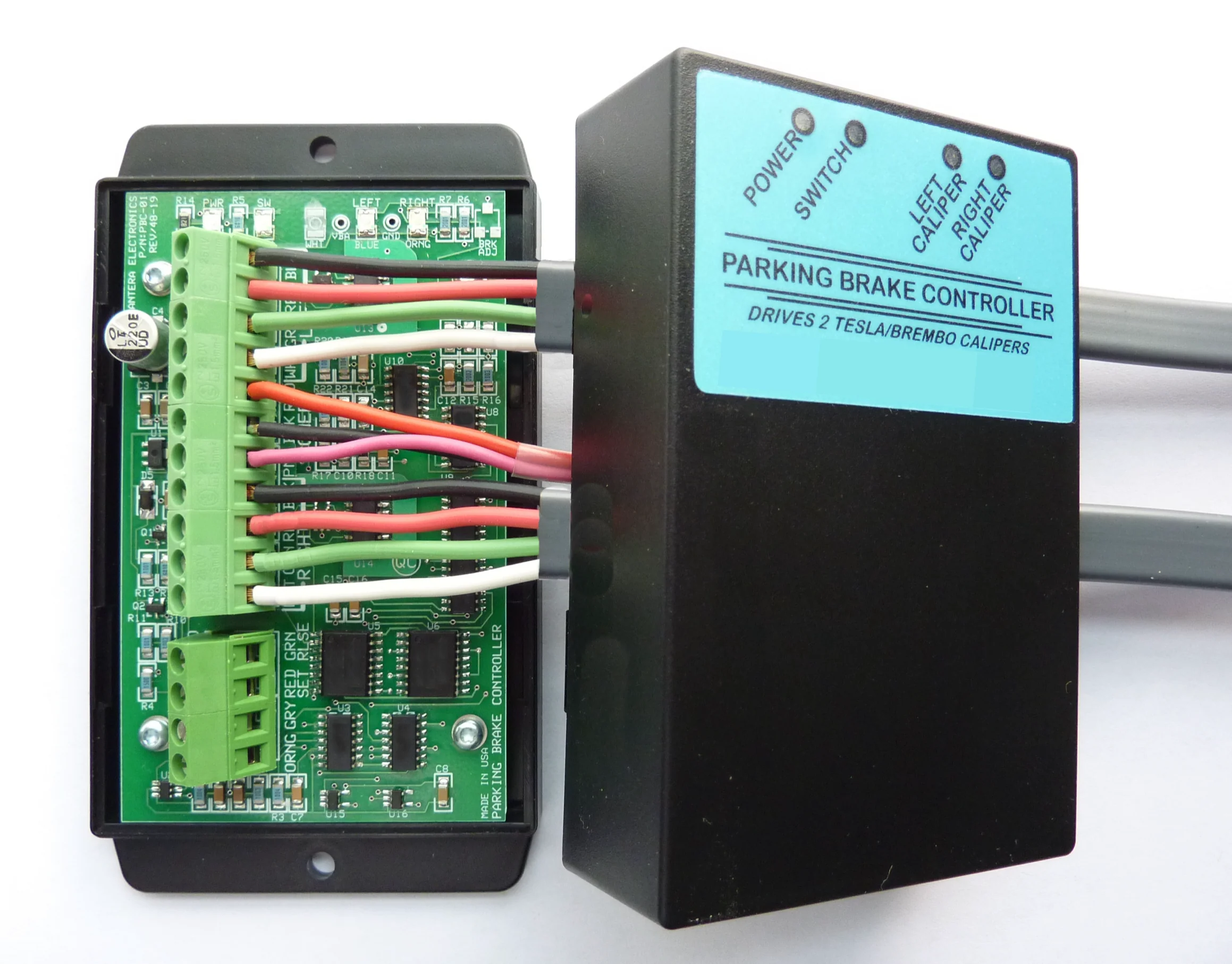

The Advanced Parking Brake Controller can be activated by either a push-button switch or a hand-lever switch. A toggle switch on the boards can be used to change between the two modes. When the switch is pressed to SET, the calipers close until a specific pressure is attained and the indicator illuminates red. When the switch is pressed to RELEASE, the calipers open to a specific distance and the indicator illuminates green.
Additionally, the Advanced controller adds the following features:
- E-Brake Indicator
- Brake Pedal Interlock
- Caliper Current Adjustment
- Open Caliper Distance Adjustment
Please note, even though the Model S was originally manufactured for 4 wires and the Model 3 for 2 wires, our system uses only 2 wires for both vehicles. Tesla simplified to 2 wires, thus so have we.

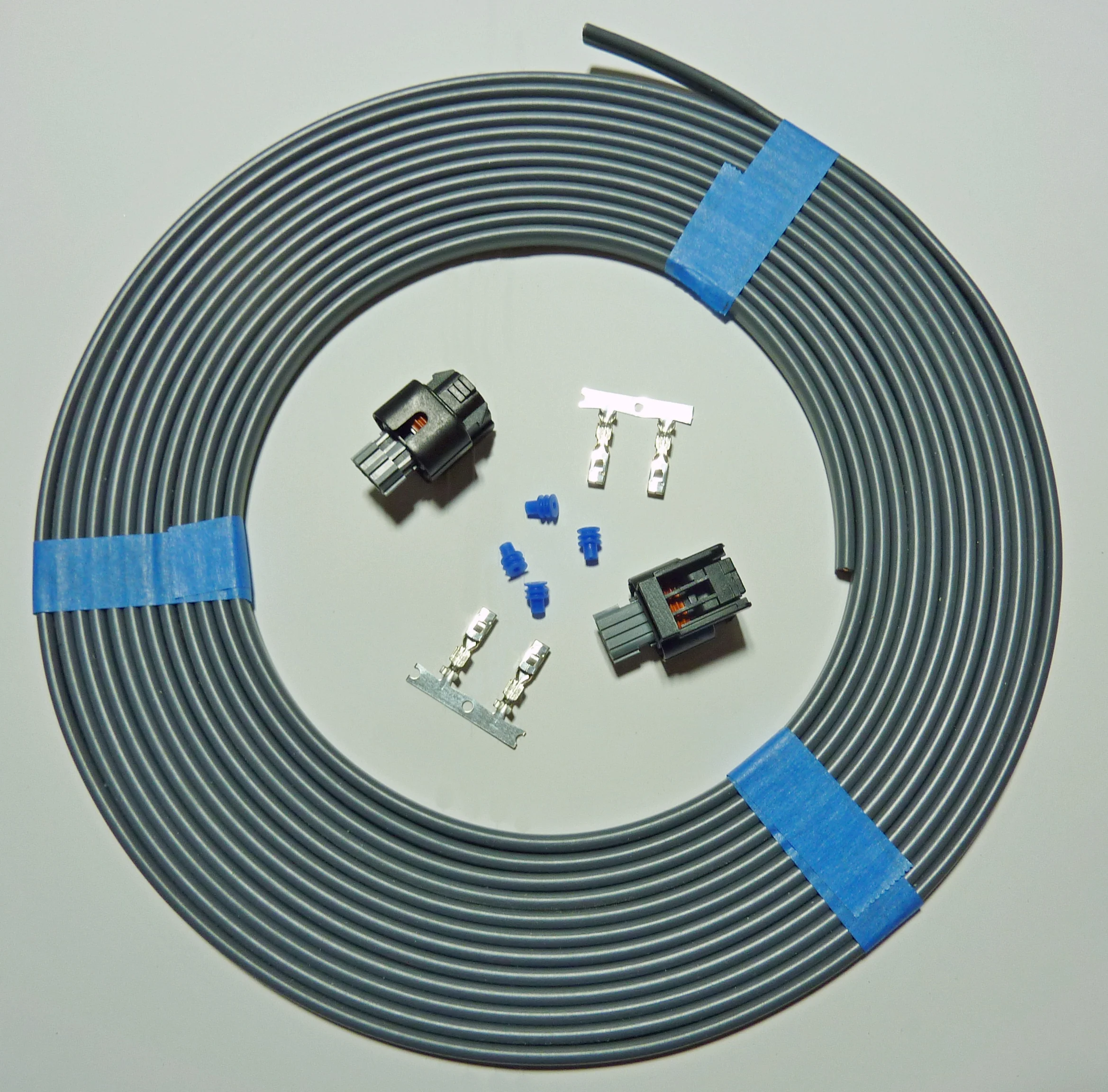

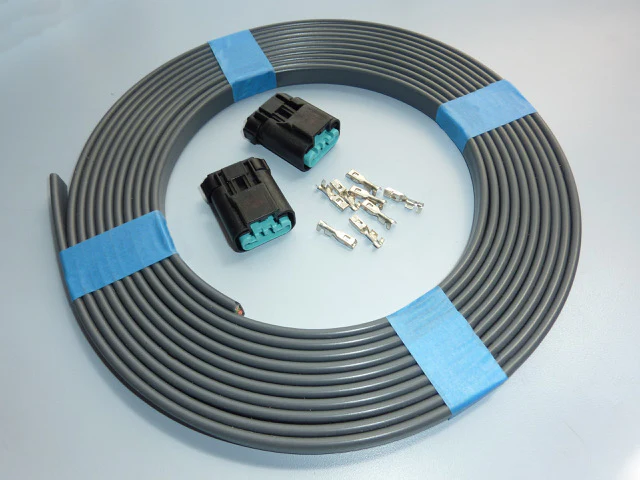

Optional Installation Kit includes mating connectors for calipers and 25 foot 2-wire harness.

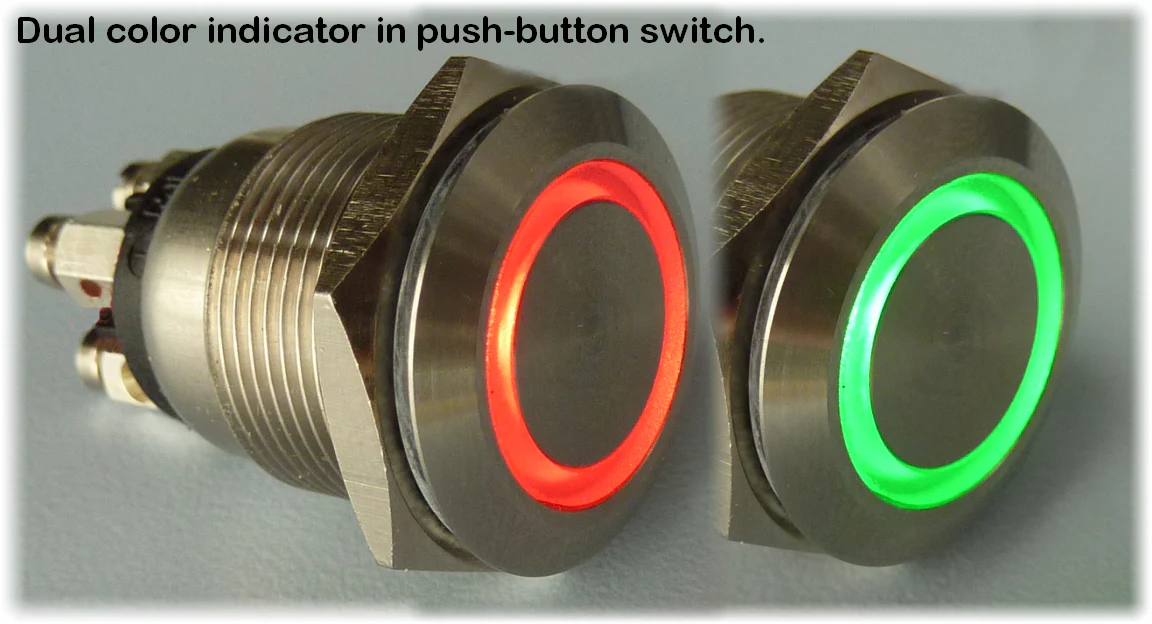

Optional Push-Button shines red or green to indicate brake position.
Wiring Manual pdf (older button style)
Original: $357.00
-70%$357.00
$107.10Product Information
