Heavy Duty Sealed Power Connector - one male/female set

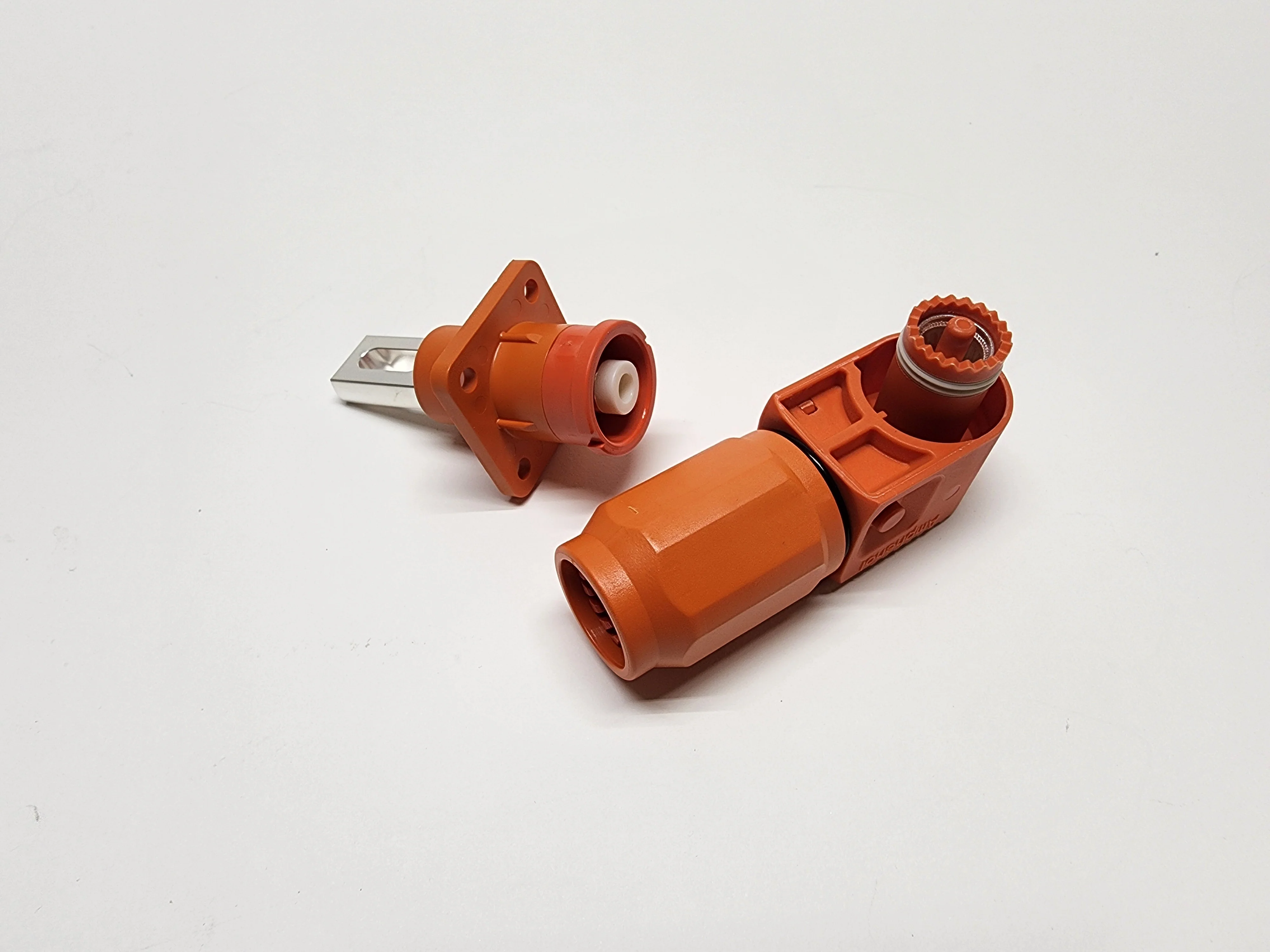

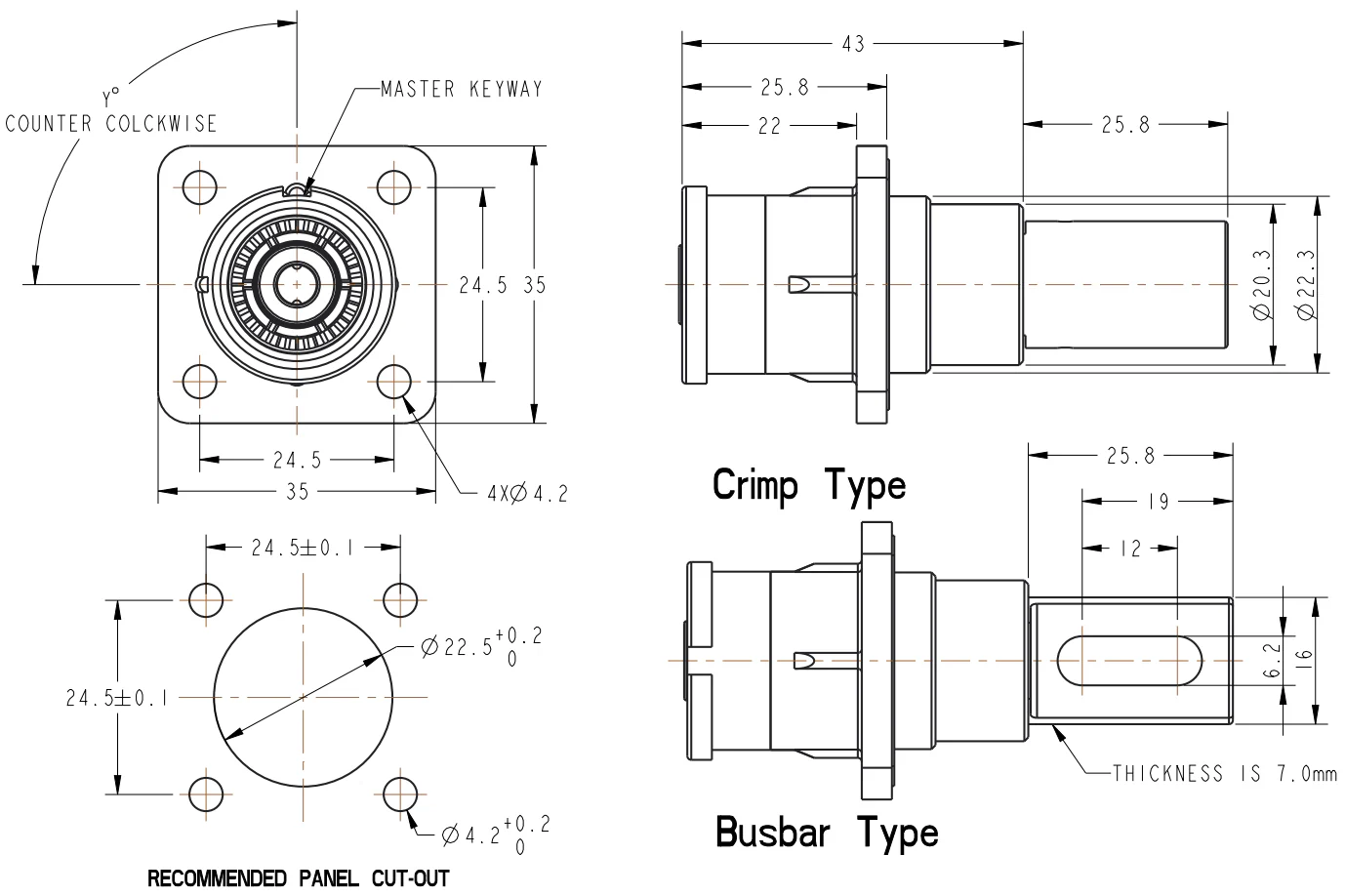

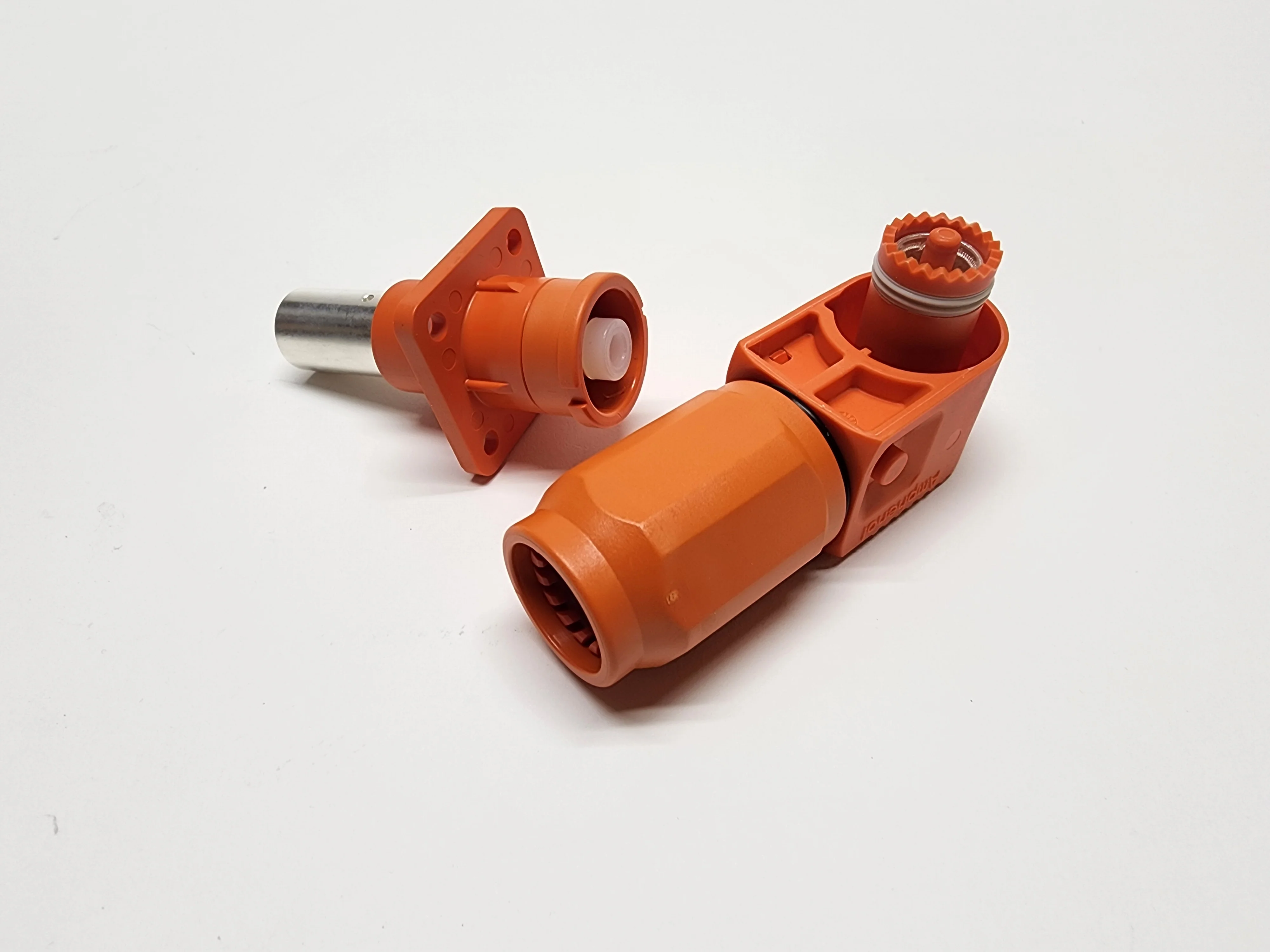

We now carry this sweet high voltage connector set from Amphenol - a real nice step up from the traditional Anderson connectors, and at a reasonable cost. Plugs use a crimp connection and receptacles are available with either crimp or busbars connections. The same crimp style connections you would use for cable lugs, so hydraulic crimper recommended. They feature a quick lock and press-to-release design and are a perfect fit when using our Modular Battery Box for Tesla Battery Modules. Available with 90° or 180° keying to ensure you can't mix up your connections.
Maximum wire gauge: 2/0 AWG
Current Rating: 350A
Voltage Rating: 1,000 V

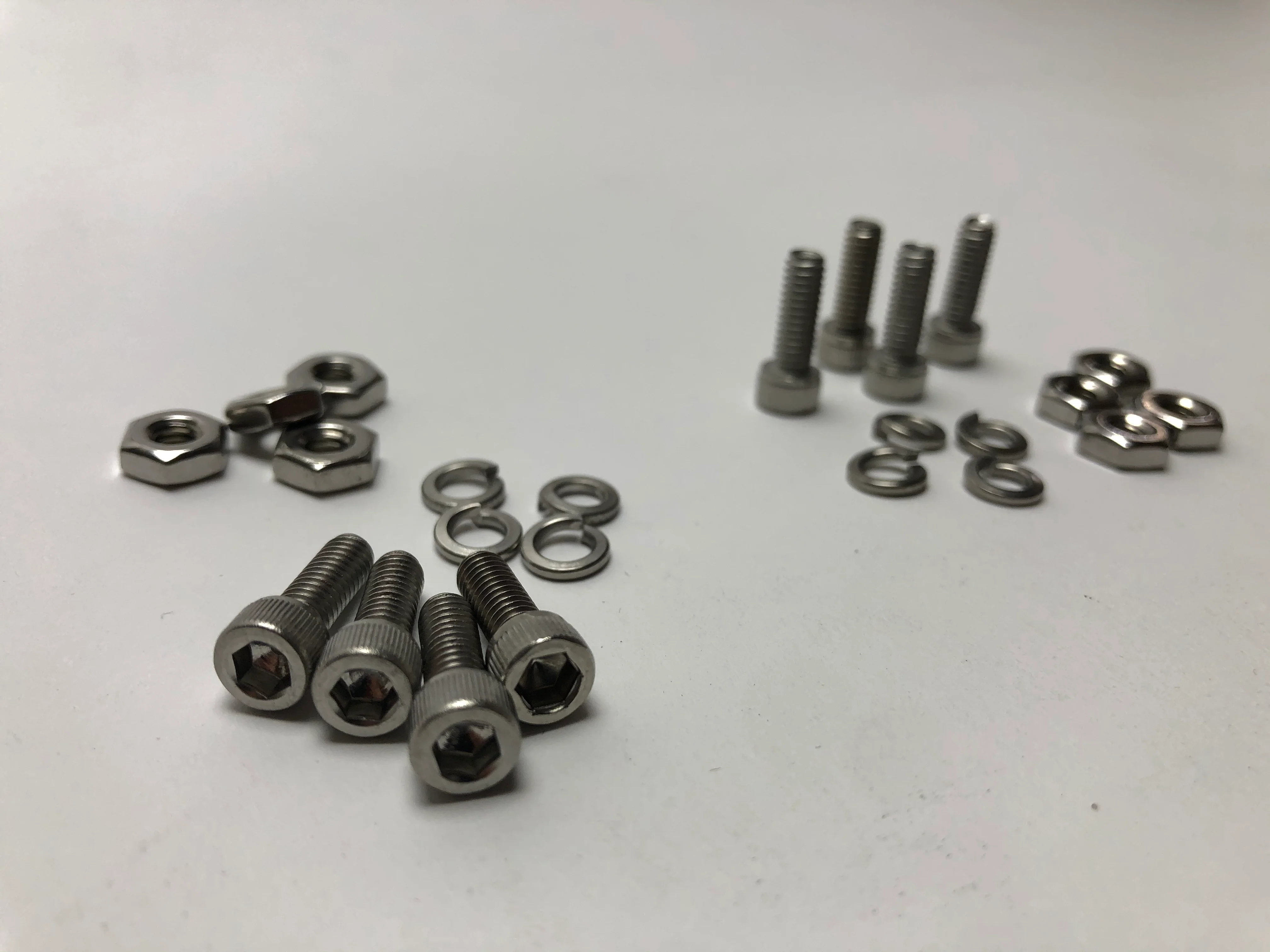

Stainless steel mounting hardware included.
Original: $66.00
-70%$66.00
$19.80Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
We now carry this sweet high voltage connector set from Amphenol - a real nice step up from the traditional Anderson connectors, and at a reasonable cost. Plugs use a crimp connection and receptacles are available with either crimp or busbars connections. The same crimp style connections you would use for cable lugs, so hydraulic crimper recommended. They feature a quick lock and press-to-release design and are a perfect fit when using our Modular Battery Box for Tesla Battery Modules. Available with 90° or 180° keying to ensure you can't mix up your connections.
Maximum wire gauge: 2/0 AWG
Current Rating: 350A
Voltage Rating: 1,000 V
Stainless steel mounting hardware included.
